Installing a Jeep Gladiator LED bar roof can transform your night driving, off-roading, and even daily commutes. You get brighter light, better style, and a safer ride. But many Jeep owners feel nervous about cutting wires or drilling into their beloved vehicle. The good news? With the right guide, tools, and a bit of patience, almost anyone can install an LED roof bar and enjoy the benefits.
If you’ve ever struggled with poor factory lighting or wanted that aggressive, adventure-ready look, you’re not alone. This guide walks you through every important step, from choosing the right LED bar to wiring and final adjustments. You’ll also get practical advice, common mistakes to avoid, and answers to the most frequent questions.
Why Install A Roof Led Bar On Your Jeep Gladiator?
A roof LED bar is more than just a cool accessory. It brings real benefits for Jeep Gladiator owners:
- Brighter illumination: LED bars flood a wide area with light, making trails, campsites, and dark roads much safer.
- Improved visibility: See obstacles, wildlife, and road hazards before they become problems.
- Modern style: An LED bar adds a rugged, custom look.
- Increased safety: Better lighting means fewer accidents or missed turns at night.
Many Jeep owners use roof LED bars for off-roading, night camping, or emergency situations. But even if you only drive on the highway, the extra light can make all the difference during storms or power outages.
What To Consider Before Installation
Before you buy or install an LED roof bar, there are a few things to think about. These details will help you avoid wasting money or making mistakes.
1. Led Bar Size And Type
The most common sizes for Jeep Gladiator roof bars are 40-inch, 50-inch, and sometimes 52-inch. The size you choose affects both the look and the amount of light. Flood vs. spot: Flood beams spread light wide; spot beams throw it far. Many bars offer a combo pattern for the best of both.
2. Mounting Brackets
Not all LED bars fit the Gladiator’s roof without special brackets. Buy vehicle-specific brackets designed for the Jeep Gladiator. Universal brackets may not fit well and can rattle or scratch your paint.
3. Wiring And Switch
Decide how you want to control your LED bar. Many people use an AUX switch panel inside the Jeep. Some kits include a wiring harness, but you may need extras, especially for longer runs or multiple bars.
4. Legal Rules
Some areas have laws about when and where you can use roof-mounted LED bars. Check your local regulations to avoid tickets or fines.
5. Weatherproofing
Look for an LED bar with a high IP rating (like IP67 or IP68), which means it’s dustproof and waterproof. This is essential for off-roading and long-term use.
6. Warranty And Brand Reputation
Choose a trusted brand with a good warranty. Cheap bars often fail early or leak.

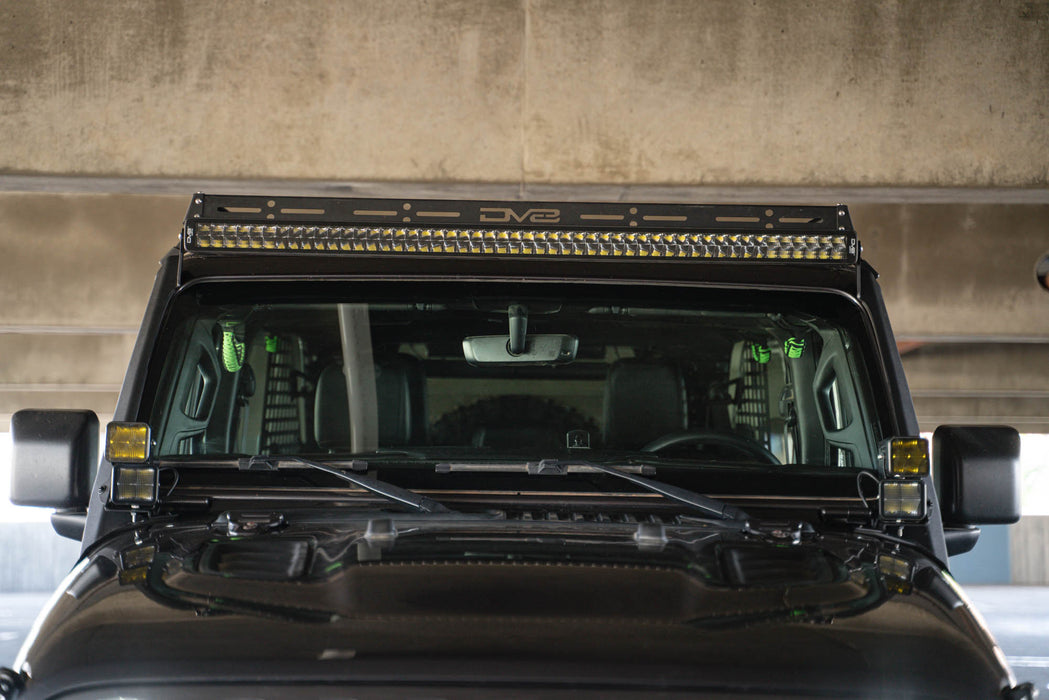

Credit: dv8offroad.com
Tools And Materials You’ll Need
Before starting, gather all the tools and materials. Skipping this step often leads to frustration or poor results.
Basic tools and supplies:
- Socket set (metric)
- Torx bit set (for Jeep bolts)
- Screwdrivers (Phillips and flathead)
- Drill and drill bits (only if required by your brackets)
- Allen wrenches (hex keys)
- Wire stripper and crimper
- Electrical tape
- Zip ties
- Measuring tape
- Marker or grease pencil
Materials:
- LED light bar (proper size for Gladiator roof)
- Mounting brackets (vehicle-specific)
- Wiring harness with relay and fuse
- Switch (if not included)
- Silicone sealant (weatherproofing)
- Rubber grommets (for wire entry points)
Safety tip: Always disconnect the vehicle battery before starting electrical work.
Step-by-step Jeep Gladiator Led Bar Roof Installation
Now let’s get into the actual installation. These steps are based on real-world experience and common kit designs.
1. Test Your Led Bar
Before mounting, connect the LED bar to a battery (using the harness) to make sure it works. This saves time if there’s a problem.
2. Plan The Mounting
Hold the LED bar and brackets up to the roof to check alignment. Mark where the brackets will sit. Make sure nothing blocks doors, the windshield, or roof panels.
Non-obvious tip: Some brackets use existing factory holes (like the windshield frame bolts). If your brackets do, you may not need to drill.
3. Attach The Brackets
Remove any factory bolts as needed (often with a Torx bit). Attach the mounting brackets to the roof or A-pillars loosely at first. Don’t tighten fully yet—this allows for adjustment.
Beginner mistake: Over-tightening brackets before the bar is mounted. Always leave room to adjust until everything lines up.
4. Mount The Led Bar
With a friend’s help, set the LED bar onto the brackets. Insert the supplied bolts and washers, then hand-tighten. Adjust the angle of the bar so it points where you want—usually just above horizontal for the best road coverage.
5. Route The Wiring
This step is critical for a clean, safe install.
- Run the wiring harness along the A-pillar (the frame beside the windshield).
- Use zip ties to keep wires tidy and away from moving parts.
- If wires enter the cab, use a rubber grommet to protect them from sharp metal edges.
- Avoid areas with extreme heat or sharp corners.
Non-obvious tip: Test-fit the wiring harness before connecting anything. This avoids cutting or crimping wires in the wrong place.
6. Connect To Power And Switch
- Attach the red wire (positive) to the battery’s positive terminal.
- Attach the black wire (ground) to a clean, unpainted metal surface.
- Run the switch wire inside the cab. Mount the switch where you can reach it while driving.
- Connect the relay and fuse (usually included in the harness).
If your Jeep has factory AUX switches, you can connect to them for a cleaner look.
7. Test And Adjust
Reconnect the battery. Flip the switch and check the LED bar operation. Adjust the bar’s angle if needed. Tighten all bolts securely.
8. Weatherproof And Finish
Seal any holes or wire entry points with silicone sealant to keep out water. Tidy up any loose wires with zip ties.
Pro tip: After a week, re-check all bolts and connections to ensure nothing has loosened after driving.
Credit: zroadz.com
Comparison: Roof Led Bars Vs. Other Lighting Options
To help you understand why a roof LED bar is so popular for the Jeep Gladiator, here’s a quick comparison with other common lighting upgrades.
| Lighting Option | Light Output | Installation Difficulty | Cost (Average) | Best Use |
|---|---|---|---|---|
| Roof LED Bar | Very High | Moderate | $150–$500 | Off-road, night driving |
| Bumper Light Pods | Medium | Easy | $80–$250 | Supplemental, fog lights |
| Factory Headlights | Low–Medium | Factory | Included | General road use |
| Grille Light Bar | Medium–High | Moderate | $100–$350 | Accent, extra forward light |
Common Mistakes And How To Avoid Them
Even experienced Jeep owners make errors when installing a roof LED bar. Here are a few to watch out for:
- Choosing the wrong size bar or brackets. Always measure your roof and double-check product fitment before buying.
- Poor wire routing. Wires that hang loose can get snagged or damaged. Use zip ties and keep everything tidy.
- Skipping the relay or fuse. This can lead to electrical fires or fried switches. Always use the supplied relay and fuse.
- Ignoring water sealing. Unsealed holes and wires will lead to leaks and rust.
- Not checking local laws. Using roof lights on public roads may be illegal in some areas.
- Over-tightening bolts. This can strip threads or crack mounting points.
Led Bar Brands Popular Among Jeep Gladiator Owners
With so many options on the market, it’s smart to compare a few top brands before buying. Here’s a look at some popular choices:
| Brand | Warranty | IP Rating | Average Price | Notes |
|---|---|---|---|---|
| Rigid Industries | Limited Lifetime | IP68 | $400–$900 | Top durability, made in USA |
| KC HiLiTES | 5 Years | IP67 | $350–$800 | Classic styling, high output |
| Auxbeam | 2 Years | IP67 | $150–$350 | Affordable, good value |
| Nilight | 2 Years | IP67 | $80–$200 | Budget-friendly, reliable |
Practical Tips For A Smooth Installation
- Label your wires before starting. This makes future troubleshooting much easier.
- Take photos as you remove factory bolts or panels. It helps during reassembly.
- Use anti-seize lubricant on mounting bolts to prevent rust, especially if you off-road often.
- Check for wind noise after installation. If you hear whistling, add a light bar cover or foam inserts between the bar and brackets.
- Inspect your work every few months. Road vibration can loosen bolts over time.
Credit: gobiracks.com
Real-world Example: Installing A 50-inch Led Bar
Let’s look at an example. John, a Jeep Gladiator owner in Arizona, installed a 50-inch combo LED bar using vehicle-specific brackets and a pre-made wiring harness. He spent about 3 hours on the project.
His tips:
- Pre-fit everything before drilling.
- Use a helper to hold the bar during mounting.
- Route wires through the factory grommet on the driver’s side for a clean look.
- Double-check legal rules—he uses a removable cover for road driving.
The result? Dramatically better night visibility on back roads and a tough, custom look.
Maintenance And Care
A roof-mounted LED bar needs little maintenance, but a few simple habits will keep it bright and reliable:
- Wash the lens regularly to remove dirt and bugs.
- Check bolts every oil change.
- Inspect wiring after off-roading.
- Cover the bar when not in use to prevent UV damage.
If you spot moisture inside the lens, check the seals and contact the manufacturer if it’s under warranty.
Where To Find More Help
There are many online forums and official Jeep guides for further questions. The Jeep Gladiator official site is a good starting point for Jeep-specific info.
Frequently Asked Questions
How Hard Is It To Install A Roof Led Bar On A Jeep Gladiator?
If you have basic hand tools and patience, it’s a moderate DIY job. Most people can finish in 2–4 hours. The hardest parts are neat wire routing and aligning the brackets.
Will Installing A Roof Led Bar Void My Jeep’s Warranty?
Not usually, if you don’t cut factory wires or damage original parts. Using the factory AUX switches is safest. Always keep receipts and instructions to show the dealer.
Can I Use The Led Bar On Public Roads?
This depends on local laws. In many places, roof-mounted LED bars are for off-road use only. Use a removable cover or connect to an AUX switch so you can turn it off on public streets.
What If My Led Bar Gets Water Inside?
Most quality LED bars are sealed, but leaks can happen. Dry the bar, check the seals, and contact the maker for warranty if needed. Never keep using a bar full of water—it can short out.
Is A Professional Installation Better?
A pro installer can make the job faster and ensure perfect wiring. But many Jeep owners do it themselves for the satisfaction and cost savings. If in doubt, ask for help with the wiring or drilling parts.
A well-installed roof LED bar is one of the best upgrades for a Jeep Gladiator. With the right preparation and attention to detail, you’ll have brighter nights and a more capable Jeep—ready for any adventure.
