If you own a Jeep Wrangler, you know how important staying connected can be, whether you’re off-roading or on a long road trip. Installing a CB radio in your Jeep isn’t just about adding a cool gadget—it’s about safety, communication, and enhancing your adventure.
You might think it’s complicated, but with the right steps, you can do it yourself quickly and easily. Keep reading, and you’ll learn exactly how to install a CB radio in your Jeep Wrangler, so you can stay connected wherever the road takes you.

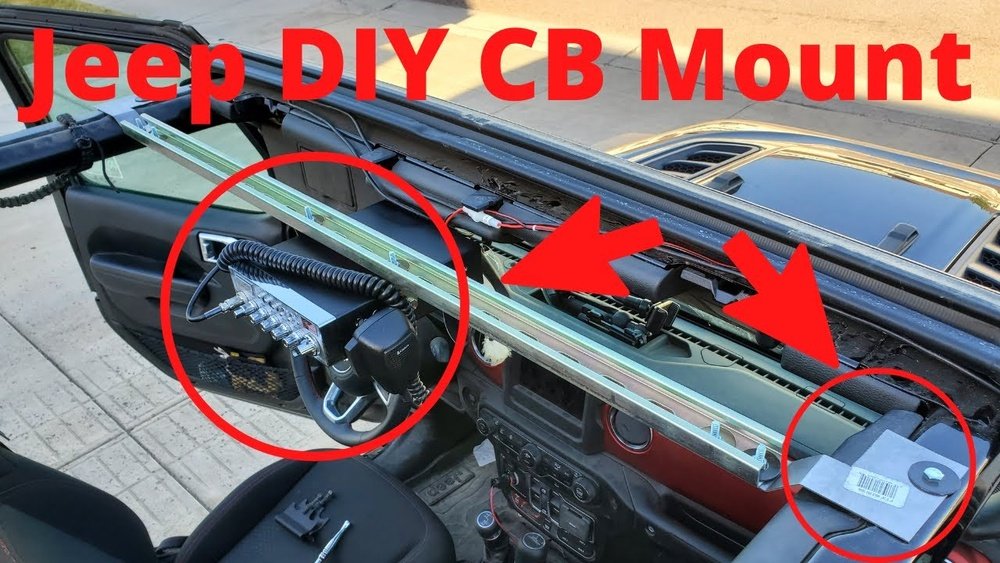

Credit: www.quadratec.com
Choosing The Right Cb Radio
Choosing the right CB radio for your Jeep Wrangler matters a lot. It affects how well you can talk during off-road trips or emergencies. Picking the best model helps you get clear sound and easy use. This section breaks down key points to help you decide.
Types Of Cb Radios
There are three main types of CB radios: mobile, handheld, and base station. Mobile radios fit inside your Jeep and connect to an antenna outside. Handheld radios are small and portable but have less range. Base stations are larger and stay at home or camp. For Jeep Wranglers, mobile radios work best.
Features To Consider
Look for radios with good range and clear sound quality. Noise filters help reduce static. A built-in SWR meter shows antenna performance. Easy controls and a readable display make use simple. Some radios offer weather channels for updates. Power output affects how far your signal goes.
Recommended Models For Jeep Wrangler
Some popular models fit well in Jeep Wranglers. The Cobra 29 LX offers strong signal and clear audio. Midland 1001L is compact and user-friendly. Uniden PRO520XL is affordable and reliable. These radios balance size, power, and features for off-road use.
Preparing Your Jeep Wrangler
Preparing your Jeep Wrangler for a CB radio installation is an important step. It ensures a smooth and safe setup. Taking time to prepare the vehicle will save effort later. This preparation helps avoid damage and makes the process easier.
Before starting, gather the right tools and choose the best spot for the radio. Also, keep safety in mind to protect yourself and your Jeep.
Tools Needed
Collect all tools before starting the installation. You will need a drill, screwdriver, wire stripper, and wrench. A multimeter helps check electrical connections. Have zip ties and electrical tape ready for securing wires. These tools make the process faster and cleaner.
Selecting The Installation Location
Pick a spot inside the Jeep that is easy to reach. Many Jeep owners choose the dashboard or near the center console. The location should not block air vents or controls. Also, it should allow clear access to the microphone and controls. Make sure the antenna cable can reach the mounting point without strain.
Safety Precautions
Always disconnect the Jeep’s battery before starting work. This step prevents electrical shorts and shocks. Wear gloves and safety glasses to protect from sharp edges. Keep the workspace clean to avoid slips or trips. Follow instructions carefully to avoid damage to the Jeep’s electrical system.
Installing The Mounting Bracket
Installing the mounting bracket is a key step for your Jeep Wrangler’s CB radio setup. A well-placed bracket holds the radio firmly and keeps it easy to use. This part ensures your radio stays safe during off-road drives and rough terrain.
Take your time during installation. The right spot and secure fitting make your CB radio both functional and comfortable to reach. Let’s explore how to install the mounting bracket correctly.
Finding The Best Spot
Choose a spot that is easy to reach while driving. Many Jeep owners pick the area near the driver’s side or above the dashboard. Avoid places that block your view or interfere with other controls. Check for enough space to fit the radio and cables.
Securing The Bracket
Use screws or bolts to attach the bracket firmly. Make sure it does not move or shake. If your Jeep has a roll bar, consider clamps designed for them. Tighten all fasteners well, but avoid damaging the vehicle’s interior.
Adjusting For Comfort
Position the bracket so the radio sits at a natural height. You should reach it without stretching or bending. Angle the radio for clear visibility. Test the setup by sitting in the driver’s seat and making small adjustments.
Wiring The Cb Radio
Wiring the CB radio in your Jeep Wrangler is a key step for clear communication. Proper wiring ensures the radio gets power and works safely. Follow these steps carefully to connect your CB radio correctly.
Running The Power Cables
Start by choosing a safe path for the power cables. Run cables from the radio to the battery. Avoid sharp edges or hot parts that can damage wires. Use cable ties to keep wires neat and secure. This prevents loose cables that might cause problems later.
Connecting To The Battery
Connect the red power cable to the positive terminal of the battery. Make sure the connection is tight and clean. Use a fuse holder close to the battery. This protects the radio from power surges. Double-check the connection to avoid any power loss.
Grounding The Radio
Grounding is important to stop electrical noise and interference. Attach the black ground wire to a metal part of the Jeep’s frame. Clean the metal surface before connecting for better contact. A good ground improves radio performance and safety.
Antenna Installation
The antenna is a key part of your CB radio setup in a Jeep Wrangler. Proper antenna installation ensures clear communication and strong signal reception. This section guides you through selecting, mounting, and connecting the antenna to get the best performance.
Choosing The Antenna Type
Pick an antenna that fits your Jeep and usage needs. Whip antennas are common and offer good range. Magnet mount antennas are easy to install and remove. Consider the height and durability for off-road conditions. A flexible antenna can prevent damage on rough trails.
Mounting The Antenna
Find a strong spot on your Jeep for the antenna mount. The roof or rear bumper are popular locations. Make sure the mount is secure and stable. Use a bracket designed for Jeep Wranglers to avoid scratches. Keep the antenna upright for best signal strength.
Connecting The Coaxial Cable
Use a high-quality coaxial cable for clear transmission. Connect one end to the antenna base and the other to the CB radio. Avoid sharp bends or kinks in the cable. Secure the cable along the Jeep frame to prevent movement. Check all connections are tight to avoid signal loss.
Credit: www.quadratec.com
Testing The Setup
Testing the setup is an important step after installing a CB radio in your Jeep Wrangler. It makes sure everything works well. You can catch any problems early and fix them fast. This step helps you enjoy clear communication on your adventures.
Powering On The Radio
Turn on the CB radio by pressing the power button. Check if the display lights up or if you hear any sound. If the radio does not turn on, check the power connections and fuse. Make sure the Jeep’s battery is charged. Powering on is the first sign your installation is correct.
Checking Signal Reception
Listen for static or background noise on the radio. This noise shows the radio is receiving signals. Try tuning to different channels to find the clearest one. You can also ask a friend with a CB radio to call you. Good reception means the antenna is working well and installed right.
Adjusting Settings
Adjust the volume so you can hear clearly but not too loud. Set the squelch to remove background noise when no one is talking. Test the microphone by speaking into it and watching the signal meter. Fine-tune these settings until the sound is clear and strong. Proper settings improve your communication experience.
Troubleshooting Common Issues
Troubleshooting common issues helps keep your CB radio working well. Problems can stop your radio from working or reduce its signal quality. Finding and fixing these problems makes your radio reliable on every trip.
No Power To The Radio
Check the radio’s power connections first. Loose or broken wires cause no power. Look at the fuse and replace it if blown. Test the vehicle’s battery to ensure it has charge. Make sure the radio’s power switch is on.
Poor Signal Quality
Signal problems often come from bad wiring or antenna issues. Check if the antenna is properly connected. Make sure the radio’s settings match your antenna type. Avoid metal objects near the antenna that block signals. Try moving the Jeep to a clear area for better reception.
Antenna Problems
Inspect the antenna for damage like cracks or bends. A damaged antenna lowers signal strength. Tighten all antenna mount screws to avoid movement. Use a quality antenna cable without cuts or breaks. Replace the antenna if it shows heavy wear or corrosion.
Credit: www.youtube.com
Frequently Asked Questions
What Tools Are Needed To Install A Cb Radio In Jeep Wrangler?
You need a drill, screwdriver, wire strippers, crimp connectors, and a mounting bracket. A power drill helps with mounting. Always use proper safety gear when working.
Where Is The Best Place To Mount A Cb Radio In Jeep Wrangler?
The best spot is under the dashboard or center console. It should be easily accessible and not obstruct driving controls. Secure mounting prevents vibrations and damage.
How Do I Connect The Cb Radio To Jeep Wrangler’s Power?
Connect the CB radio’s power wire to the vehicle’s fuse box or battery. Use a fuse holder for safety. Ensure proper grounding to avoid electrical issues.
Can I Install The Cb Radio Antenna Myself On Jeep Wrangler?
Yes, you can. Mount the antenna on the Jeep’s exterior, preferably the rear or roof. Use a magnetic or permanent mount for stability and better signal.
Conclusion
Installing a CB radio in your Jeep Wrangler is simple with clear steps. You can enjoy better communication on the road or off-road. Take your time to connect wires and mount the radio securely. Test the radio to make sure it works well.
This tool helps you stay safe and connected during your trips. Now, you can talk to other drivers easily. Enjoy your Jeep adventures with your new CB radio!
